Innovations in AI: Brain-inspired design for more capable and sustainable technology

by
Microsoft AI
Diagram illustrating four common neural connectivity patterns in the biological neural networks: Feedforward, Mutual, Lateral, and Feedback. Each pattern consists of circles representing neurons and arrows representing synapses. 

As AI research and technology development continue to advance, there is also a need to account for the energy and infrastructure resources required to manage large datasets and execute difficult computations. When we look to nature for models of efficiency, the human brain stands out, resourcefully handling complex tasks. Inspired by this, researchers at Microsoft are seeking to understand the brain’s efficient processes and replicate them in AI.

At Microsoft Research Asia (opens in new tab), in collaboration with Fudan University (opens in new tab), Shanghai Jiao Tong University (opens in new tab), and the Okinawa Institute of Technology (opens in new tab), three notable projects are underway. One introduces a neural network that simulates the way the brain learns and computes information; another enhances the accuracy and efficiency of predictive models for future events; and a third improves AI’s proficiency in language processing and pattern prediction. These projects, highlighted in this blog post, aim not only to boost performance but also significantly reduce power consumption, paving the way for more sustainable AI technologies.

CircuitNet simulates brain-like neural patterns

Many AI applications rely on artificial neural networks, designed to mimic the brain’s complex neural patterns. These networks typically replicate only one or two types of connectivity patterns. In contrast, the brain propagates information using a variety of neural connection patterns, including feedforward excitation and inhibition, mutual inhibition, lateral inhibition, and feedback inhibition (Figure 1). These networks contain densely interconnected local areas with fewer connections between distant regions. Each neuron forms thousands of synapses to carry out specific tasks within its region, while some synapses link different functional clusters—groups of interconnected neurons that work together to perform specific functions.

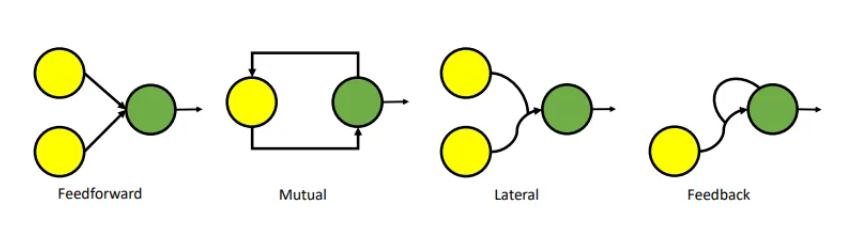

Diagram illustrating four common neural connectivity patterns in the biological neural networks: Feedforward, Mutual, Lateral, and Feedback. Each pattern consists of circles representing neurons and arrows representing synapses. 
Figure 1: The four neural connectivity patterns in the brain. Each circle represents a neuron, and each arrow represents a synapse.

Inspired by this biological architecture, researchers have developed CircuitNet, a neural network that replicates multiple types of connectivity patterns. CircuitNet’s design features a combination of densely connected local nodes and fewer connections between distant regions, enabling enhanced signal transmission through circuit motif units (CMUs)—small, recurring patterns of connections that help to process information. This structure, shown in Figure 2, supports multiple rounds of signal processing, potentially advancing how AI systems handle complex information.

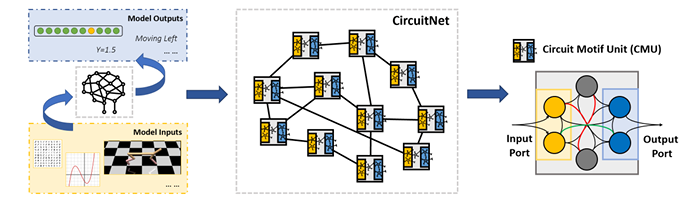

Diagram illustrating CircuitNet's architecture. On the left, diagrams labeled “Model Inputs” and “Model Outputs” show that CircuitNet can handle various input forms and produce corresponding outputs. The middle section, labeled “CircuitNet”, depicts several interconnected blocks called Circuit Motif Units (CMUs for short), which maintain locally dense communications through direct connections and globally sparse communications through their input and output ports. On the right, a detailed view of a single CMU reveals densely interconnected neurons, demonstrating how each CMU models a universal circuit motif.
Figure 2. CircuitNet’s architecture: A generic neural network performs various tasks, accepts different inputs, and generates corresponding outputs (left). CMUs keep most connections local with few long-distance connections, promoting efficiency (middle). Each CMU has densely interconnected neurons to model universal circuit patterns (right).

Evaluation results are promising. CircuitNet outperformed several popular neural network architectures in function approximation, reinforcement learning, image classification, and time-series prediction. It also achieved comparable or better performance than other neural networks, often with fewer parameters, demonstrating its effectiveness and strong generalization capabilities across various machine learning tasks. Our next step is to test CircuitNet’s performance on large-scale models with billions of parameters.

Spiking neural networks: A new framework for time-series prediction

Spiking neural networks (SNNs) are emerging as a powerful type of artificial neural network, noted for their energy efficiency and potential application in fields like robotics, edge computing, and real-time processing. Unlike traditional neural networks, which process signals continuously, SNNs activate neurons only upon reaching a specific threshold, generating spikes. This approach simulates the way the brain processes information and conserves energy. However, SNNs are not strong at predicting future events based on historical data, a key function in sectors like transportation and energy.

To improve SNN’s predictive capabilities, researchers have proposed an SNN framework designed to predict trends over time, such as electricity consumption or traffic patterns. This approach utilizes the efficiency of spiking neurons in processing temporal information and synchronizes time-series data—collected at regular intervals—and SNNs. Two encoding layers transform the time-series data into spike sequences, allowing the SNNs to process them and make accurate predictions, shown in Figure 3.

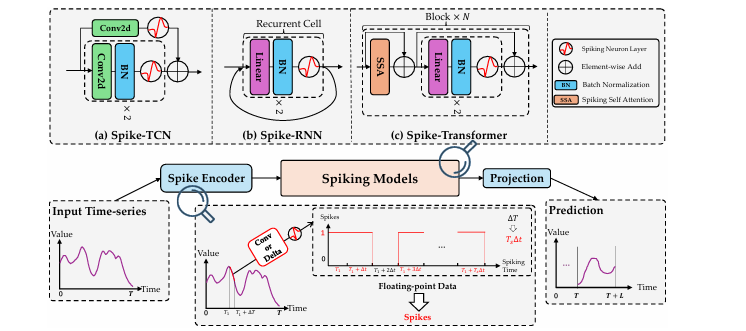

Diagram illustrating a new framework for SNN-based time-series prediction. The image shows the process starting with time series input, which is encoded into spikes by a novel spike encoder. These spikes are then fed into different SNN models: (a) Spike-TCN, (b) Spike-RNN, and (c) Spike-Transformer. Finally, the learned features are input into a projection layer for prediction.
Figure 3. A new framework for SNN-based time-series prediction: Time series data is encoded into spikes using a novel spike encoder (middle, bottom). The spikes are then processed by SNN models (Spike-TCN, Spike-RNN, and Spike-Transformer) for learning (top). Finally, the learned features are fed into the projection layer for prediction (bottom-right).

Tests show that this SNN approach is very effective for time-series prediction, often matching or outperforming traditional methods while significantly reducing energy consumption. SNNs successfully capture temporal dependencies and model time-series dynamics, offering an energy-efficient approach closely aligns with how the brain processes information. We plan to continue exploring ways to further improve SNNs based on the way the brain processes information.

Refining SNN sequence prediction

While SNNs can help models predict future events, research has shown that its reliance on spike-based communication makes it challenging to directly apply many techniques from artificial neural networks. For example, SNNs struggle to effectively process rhythmic and periodic patterns found in natural language processing and time-series analysis. In response, researchers developed a new approach for SNNs called CPG-PE, which combines two techniques:

  1. Central pattern generators (CPGs): Neural networks in the brainstem and spinal cord that autonomously generate rhythmic patterns, controlling function like moving, breathing, and chewing
  1. Positional encoding (PE): A process that helps artificial neural networks discern the order and relative positions of elements within a sequence

By integrating these two techniques, CPG-PE helps SNNs discern the position and timing of signals, improving their ability to process time-based information. This process is shown in Figure 4.

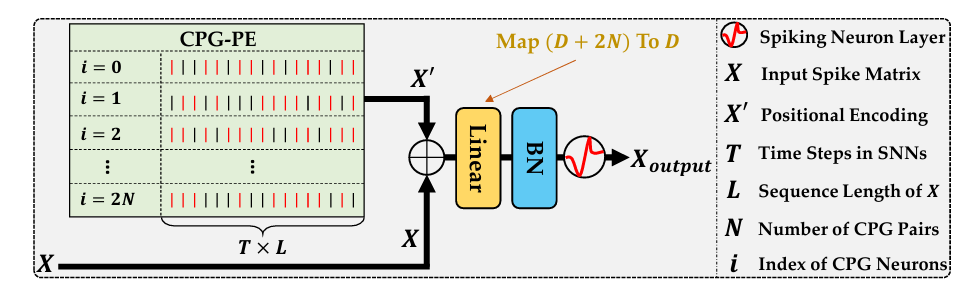

Diagram illustrating the application of CPG-PE in a SNN. It shows three main components: an input spike matrix labeled “X”, a transformation process involving positional encoding and linear transformation to produce “X’”, and the output from a spiking neuron layer labeled “X_output”. The input matrix “X” has multiple rows corresponding to different channels or neurons, each containing spikes over time steps. The transformation process maps the dimensionality from (D + 2N) to D. The spiking neuron layer takes the transformed input “X’” and produces the output spike matrix “X_output”.
Figure 4: Application of CPG-PE in an SNN. X, X′, and X-output are spike matrices.

We evaluated CPG-PE using four real-world datasets: two covering traffic patterns, and one each for electricity consumption and solar energy. Results demonstrate that SNNs using this method significantly outperform those without positional encoding (PE), shown in Table 1. Moreover, CPG-PE can be easily integrated into any SNN designed for sequence processing, making it adaptable to a wide range of neuromorphic chips and SNN hardware.

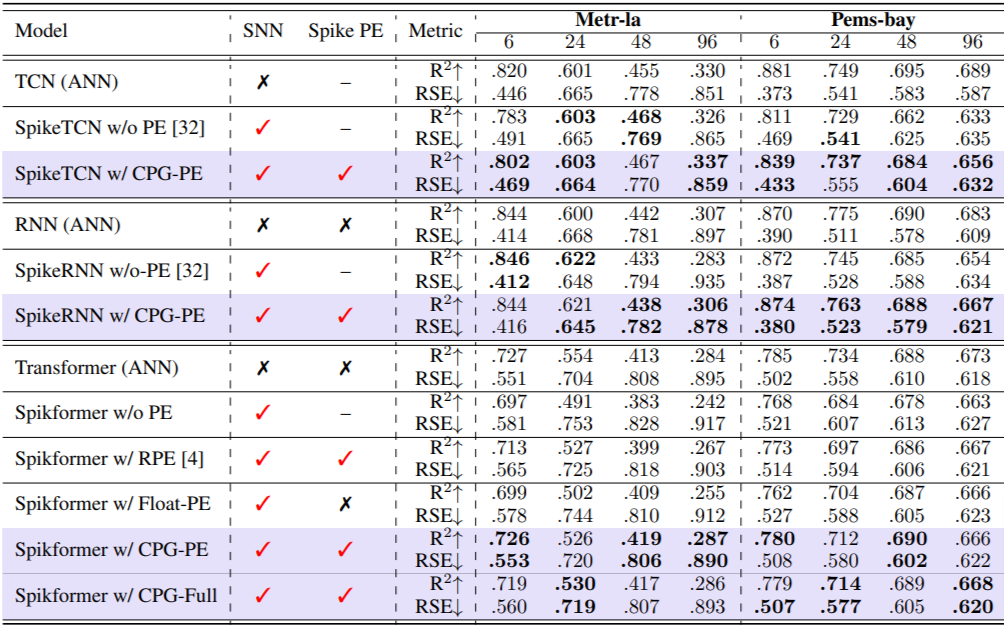

Table showing experimental results of time-series forecasting on two datasets, Metr-la and Pems-bay, with prediction lengths of 6, 24, 48, and 96. The table compares the performance of various models, including different configurations of SNN, RNN, and Transformers. Performance metrics such as RSE and R^2 are reported. The best SNN results are highlighted in bold, and up-arrows indicate higher scores, representing better performance.
Table 1: Evaluation results of time-series forecasting on two benchmarks with prediction lengths 6, 24, 48, 96. “Metr-la” and “Pems-bay” are traffic-pattern datasets. The best SNN results are in bold. The up-arrows indicate a higher score, representing better performance.

Ongoing AI research for greater capability, efficiency, and sustainability

The innovations highlighted in this blog demonstrate the potential to create AI that is not only more capable but also more efficient. Looking ahead, we’re excited to deepen our collaborations and continue applying insights from neuroscience to AI research, continuing our commitment to exploring ways to develop more sustainable technology.
